Technical Specifications
Brand | Atlas Filtri |
Product Type | UV Units |
Flow Rate (L/min) | 70 |
Material | Reinforced Polypropylene Filter Housings |
Nominal Micron Rating | 1 |
Inlet/Outlet | 1" |
Max Pressure (bar) | 8.3 |
Min Temp (degrees celsius) | 4 |
Max Temp (degrees celsius) | 45 |
Application | Whole Supply |
Filter | 20" Big |
Description

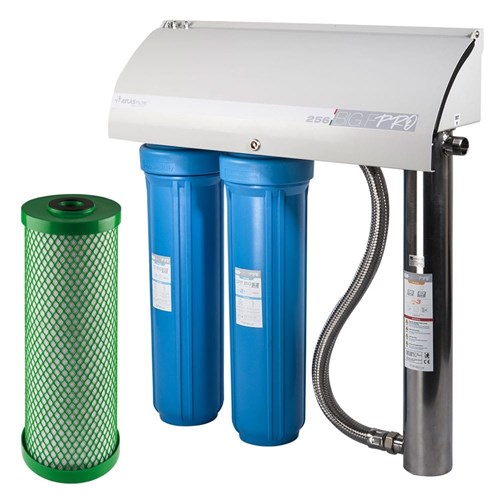

Big F Pro Series UV
The Big F Pro series UV kits are all Italian Made Plug and Play UV units.
The included Italian pre-filters reduce sediment to prevent it from sheltering bugs from the UV light. The Italian UV chamber eliminates harmful pathogens, including bacteria, protozoa (parasites) and some viruses and features an IP54 rated controller.
The units come pre-plumbed, with a single inlet/outlet, mounted on a single bracket under a lockable cover which can protect the unit from weather.
When do I need UV?
If you are on a rural supply (e.g. rain water, bore water etc) that has no protection, installing a UV is an insurance policy. Unfortunately we cannot see harmful bugs like bacteria, parasites or viruses and only find out they have been present if we become unwell. It is not practical to test our water every day, so installing a Big F Pro UV gives you the peace of mind that you are protecting the health of yourself, your family and visitors.
Of course if you have had your water tested and found harmful bacteria present, then you should boil your water until you have a Big F Pro UV installed to protect you from any future contamination.
Big F Pro 256 |
Flow Rate/Dose | 70lpm@30mJ/cm2 |
Filter Cartridge 1 | TS 20 Micron Pleated 20” Big (Order 807308) |
Filter Cartridge 2 | Carbon Block 5 Micron 20” Big (Order 810480) |
Power Consumption | 61Watts |
Power Cable Length | 2m |
Inlet/Outlet | 1” BSPF Inlet / 1” BSPM Outlet |
UV Reactor Material | 304 Stainless Steel |
UV Reactor/Controller Protection Class | IP54 |
Shipping Weight | 22kg |
Measurements (Height x Width x Depth) | 806mm x 722mm x 205mm |
